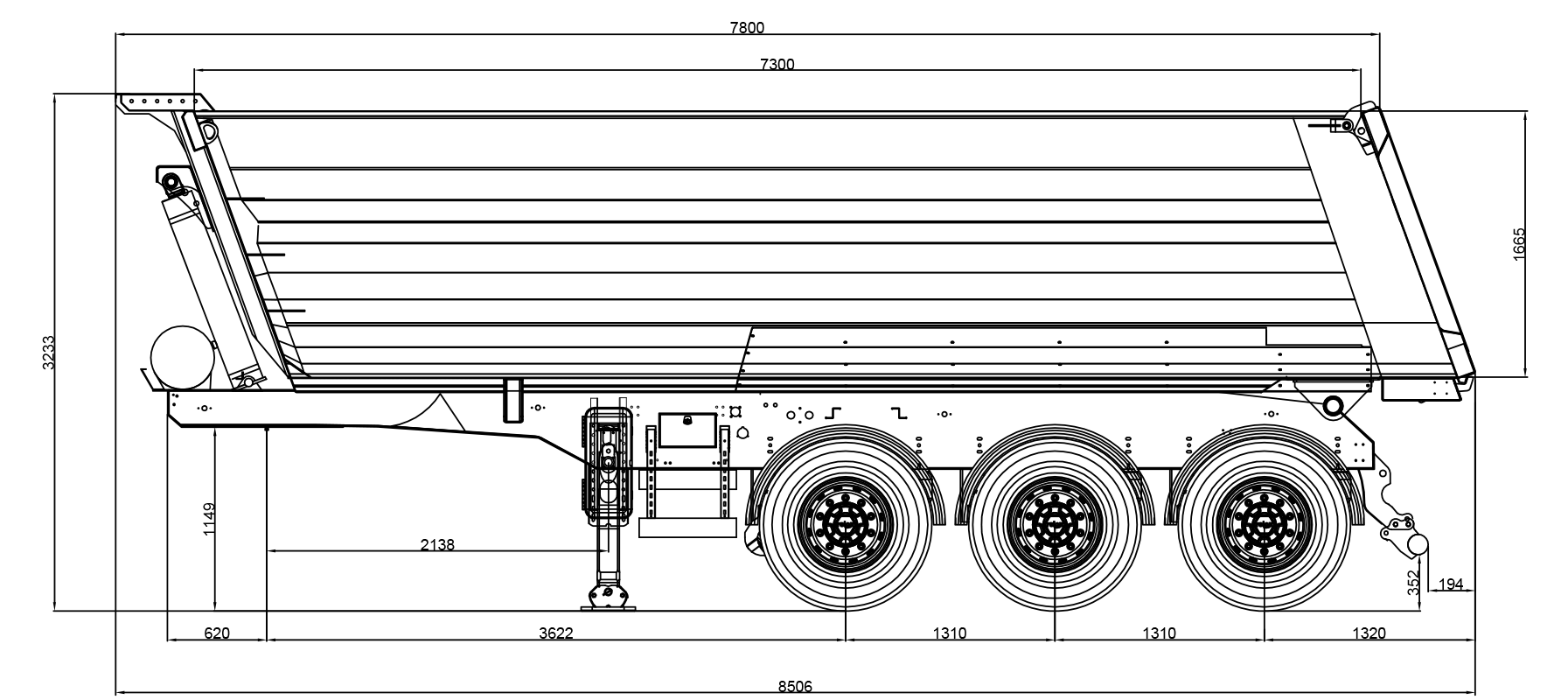

| Fifth Wheel Height | 1149 mm |
| Total Length | 8506 mm |
| Total Height | 3233 mm |
| Bucket Dimensions | 7300x2300x1665 mm |
| Bucket Volume | 28 m³ |
| Axle Capacity Technical / Registered | 27000 / 24000 kg |
| King Pin Capacity Technical / Registered | 11000 / 11500 kg |
| Total Capacity Technical / Registered | 38000 / 35500 kg |
| Empty Weight | 6950 kg+- %3 |
| Payload Capacity Technical / Registered | 31050 / 28550 kg |
| AXLES | Axle group with drum brakes, each with a capacity of 3x12 tons, front axle electrically controlled from the cabin, designed to be air driven lifting with 2B-200 ply bellows. |
| TIRES AND RIMS | 6 pieces of 385/65 R22.5 size pilot tires and 11.75x22.5 size steel alloy wheels are used. |
| CHASSIS | Chassis main sheet, upper and lower slats and all cross member plates are produced by submerged arc welding in I-section form using high strength 700MC type materials. |
| BODY STRUCTURE | Upper Frame structure is U-shaped, in volumes between 18 and 32 m³ according to usage and working conditions; It is produced using high strength, abrasion and impact resistant Hardox 450 and Hardox 500 TUF branded imported sheets in thicknesses of 4/3 to 10/8. High strength Hardox and MC700 quality sheets are also used in the upper columns and rear column reinforcements. The back cover is internally hinged and automatically locked. |
| BRAKE SYSTEM | 2S-2M EBS brake system with sensor: 30 service brake bellows on the 1st axle, 30x30 emergency brake bellows with spring bagged diaphragm support on the 2nd and 3rd axles, automatic brake ratchets, shock absorbers preventing excessive axle movements, air suspension system supported by 100 scissors and bellows. Stability Control System (RSS) and (15Km/h) - (ISS) Control Panel. Automatic Bellows Unloading System is offered as standard and can be activated from the panel according to user demand. |
| ELECTRICAL SYSTEM | 24 volt LED lighting system with 2x7 pin socket, mounted as a set with 2 LED rear work lights. There is an audible warning system in EU norms that works automatically with the reverse maneuvering system. |
| LANDING GEAR | 24 Ton lifting capacity, double speed single side controlled support legs are used. |
| HYDRAULIC SYSTEM | 5-stage telescopic cylinder with seamless cold draft C norm pipes, 120 liter volume oil tank with sealed filter in rectangular or cylinder model that can be changed according to demand, standard HD46 number hydraulic oil compatible with all seasons and working conditions. There is a hydraulic system with directional control valve with limitation, closed circuit, safety mechanism and safety mechanism controlled by electric and/or air valve from the cabin. |
| KING PIM | 2” King-Pim |
| ACCESSORIES | 1x60cm plastic cabinet, 1x50cm plastic tool cabinet, 50 liter water tank, fire extinguisher cylinder cabinet, reflector, spare wheel, wheel chock, hub cover key, pressure gauge, rear water trap mat |
| SURFACE PROTECTION | After sandblasting in SA 1/2 quality, epoxy priming and acrylic top coat painting according to the desired RAL codes. |
| OPTIONAL | 3x9 Ton Capacity Drum Axle BPW or SAF brand Disk Axle Aluminum Rim Hydraulic Back Cover Smart-Board Vibration Automatic Moving Buffer |
