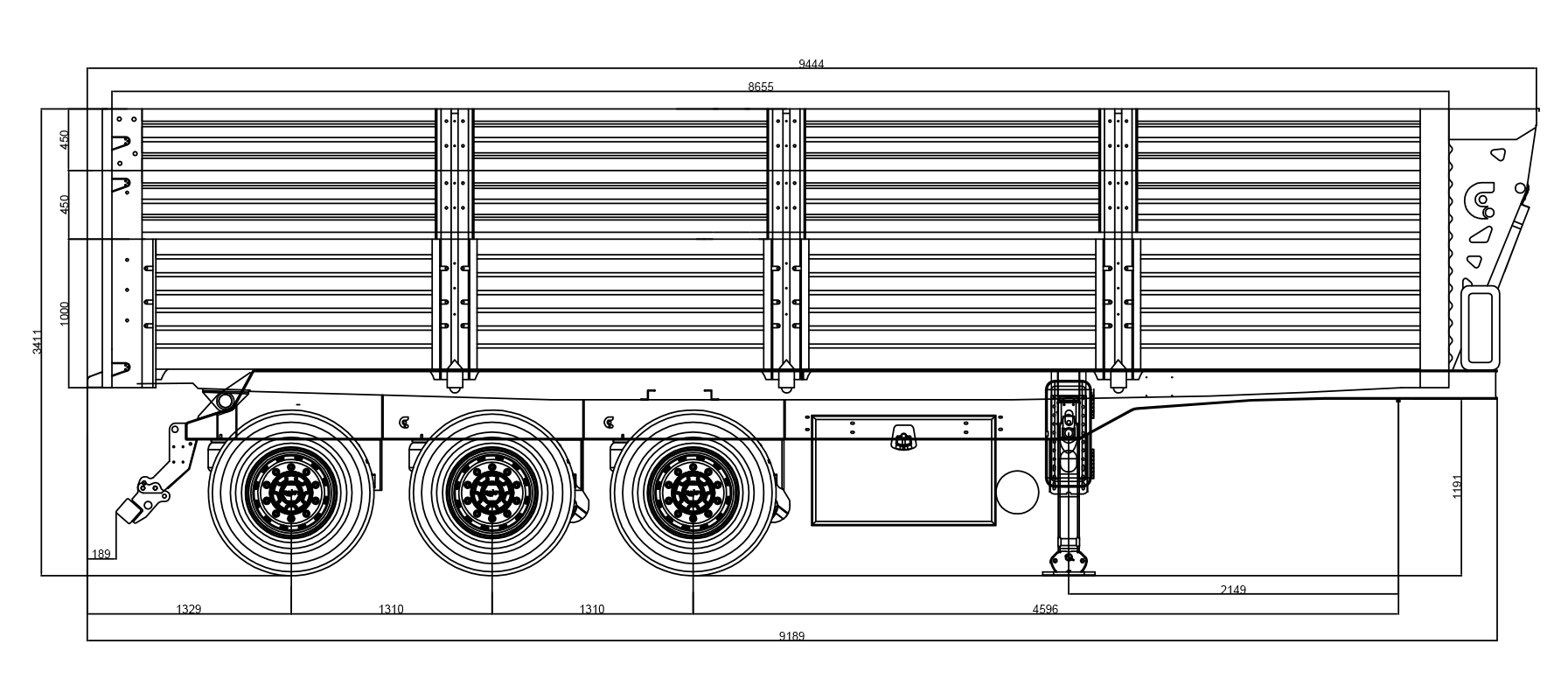

| Fifth Wheel Height | 1191 mm |
| Total Length | 9444 mm |
| Total Height | 3411 mm |
| Bucket Dimensions | 8655x2430x1900 mm |
| Bucket Volume | 40 m³ |
| Axle Capacity Technical / Registered | 27000 / 24000 kg |
| King Pin Capacity Technical / Registered | 11000 / 11500 kg |
| Total Capacity Technical / Registered | 38000 / 35500 kg |
| Empty Weight | 6250 kg+- %3 |
| Payload Capacity Technical / Registered | 31750 / 29250 kg |
| AXLES | Axle group with drum brakes, each with a capacity of 3x9 tons, front axle electrically controlled from the cabin, designed to be air driven lifting with 2B-200 ply bellows. |
| TIRES AND RIMS | 6 pieces of 385/65 R22.5 size pilot tires and 11.75x22.5 size steel alloy wheels are used. |
| CHASSIS | Chassis main sheet, upper and lower slats and all cross member plates are produced by submerged arc welding in I-section form using high strength 700MC type materials. |
| BODY STRUCTURE |
High strength 700MC box profile norms welded and supported upper frame as standard: Base sheet 2mm Hardox400, side cover sheets 1mm Strenx CR700, side addition sheets 1.2mm Strenx CR700, rear cover and rear addition sheets 1.2mm Strenx CR700 quality high strength steel materials. The side bollards are removable from the bottom, the back cover is 1450 mm high with 2 openings with the addition; it is produced with a flip-up window for discharging excess material.
|
| BRAKE SYSTEM | 2S-2M EBS brake system with sensor: 30 service brake bellows on the 1st axle, 30x30 emergency brake bellows with spring bagged diaphragm support on the 2nd and 3rd axles, automatic brake ratchets, shock absorbers preventing excessive axle movements, air suspension system supported by 70 scissors and bellows. Stability Control System (RSS) and (15Km/h) - (ISS) Control Panel. Automatic Bellows Unloading System is offered as standard and can be activated from the panel according to user demand. |
| ELECTRICAL SYSTEM | 24 volt LED lighting system with 2x7 pin socket, mounted as a set with 2 LED rear work lights. There is an audible warning system in EU norms that works automatically with the reverse maneuvering system. |
| LANDING GEAR | 24 Ton lifting capacity, double speed single side controlled support legs are used. |
| HYDRAULIC SYSTEM | 5-stage telescopic cylinder with seamless cold draft C norm pipes, 120 liter volume oil tank with sealed filter in rectangular or cylinder model that can be changed according to demand, standard HD46 number hydraulic oil compatible with all seasons and working conditions is used. There is a hydraulic system with directional control valve with limitation, closed circuit, safety mechanism, controlled by electric and/or air valve from the cabin. |
| KING PIM | 2” King-Pin |
| ACCESSORIES | 120cm galvanized sheet metal cabinet, 35 liter chrome water tank, fire extinguisher cylinder cabinet, rear reflective reflectors, spare wheel carrying place, wheel chock, hub cover key, pressure gauge, side and rear anticlear mat |
| SURFACE PROTECTION | After sandblasting in SA 1/2 quality, epoxy priming and acrylic top coat painting according to the desired RAL codes. |
| OPTIONAL | 3x12 Ton Capacity Drum Axle BPW or SAF brand Disk Axle Aluminum Rim Conversion Addition Roll Pool Framed Back Cover Smart-Board Vibration Automatic Moving Buffer |
